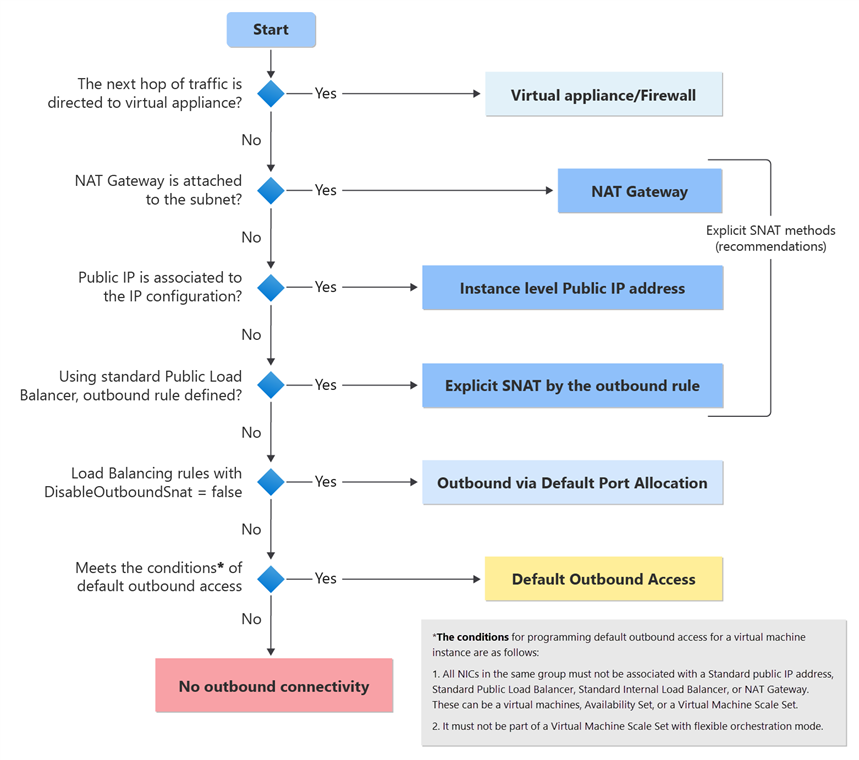

I happened upon the diagram below within the pages on default outbound internet access and it seemed a little counterintuitive. The decision flow seems to suggest that a VM will use the egress IP of a NAT gateway preferably over an assigned PIP.

What's this all about then? I am very much of the view that explicitly configured things should always override things that are implicit. It seemed so out of step that I had to test it, in case it was either a mistake in the documentation or my own incorrect interpretation.

I created an Azure Private Subnet - the last thing I wanted was to confuse matters with the individual egress IP that VMs get until the Azure IP armageddon in September - and then I created a VM with a PIP that I could SSH to.

This makes sense

simon@MacBook-Pro ~ % ssh 20.77.8.0
Welcome to Ubuntu 24.04.2 LTS (GNU/Linux 6.11.0-1015-azure x86_64)
...

...
simon@vm-test:~$
simon@vm-test:~$ dig TXT o-o.myaddr.l.google.com @ns1.google.com +short
"20.77.8.0"
simon@vm-test:~$

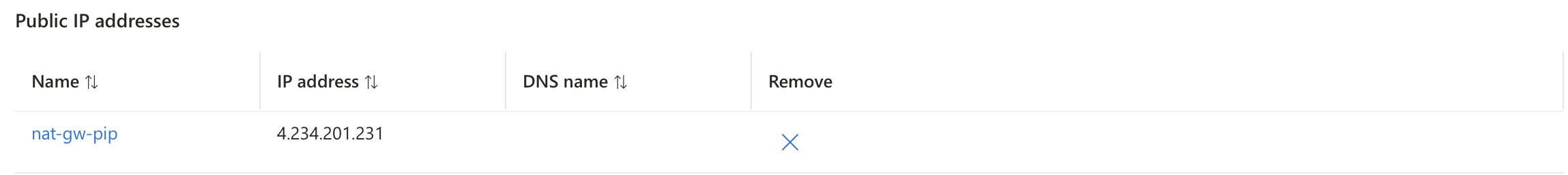

So far so absolutely predictable. Next I added a NAT gateway with a new PIP associated with it.

This also makes sense

The first thing I noticed was that my SSH connection hung. This is something to bear in mind if you are retrospectively adding a NAT gateway to a subnet. The next thing I noticed, when I reconnected to the VM was that the egress IP had indeed changed.

simon@MacBook-Pro ~ % ssh 20.77.8.0
Welcome to Ubuntu 24.04.2 LTS (GNU/Linux 6.11.0-1015-azure x86_64)
...

...
simon@vm-test:~$ dig TXT o-o.myaddr.l.google.com @ns1.google.com +short
"4.234.201.231"
simon@vm-test:~$

I am not entirely sure of the thinking behind this but will update if I find out.
